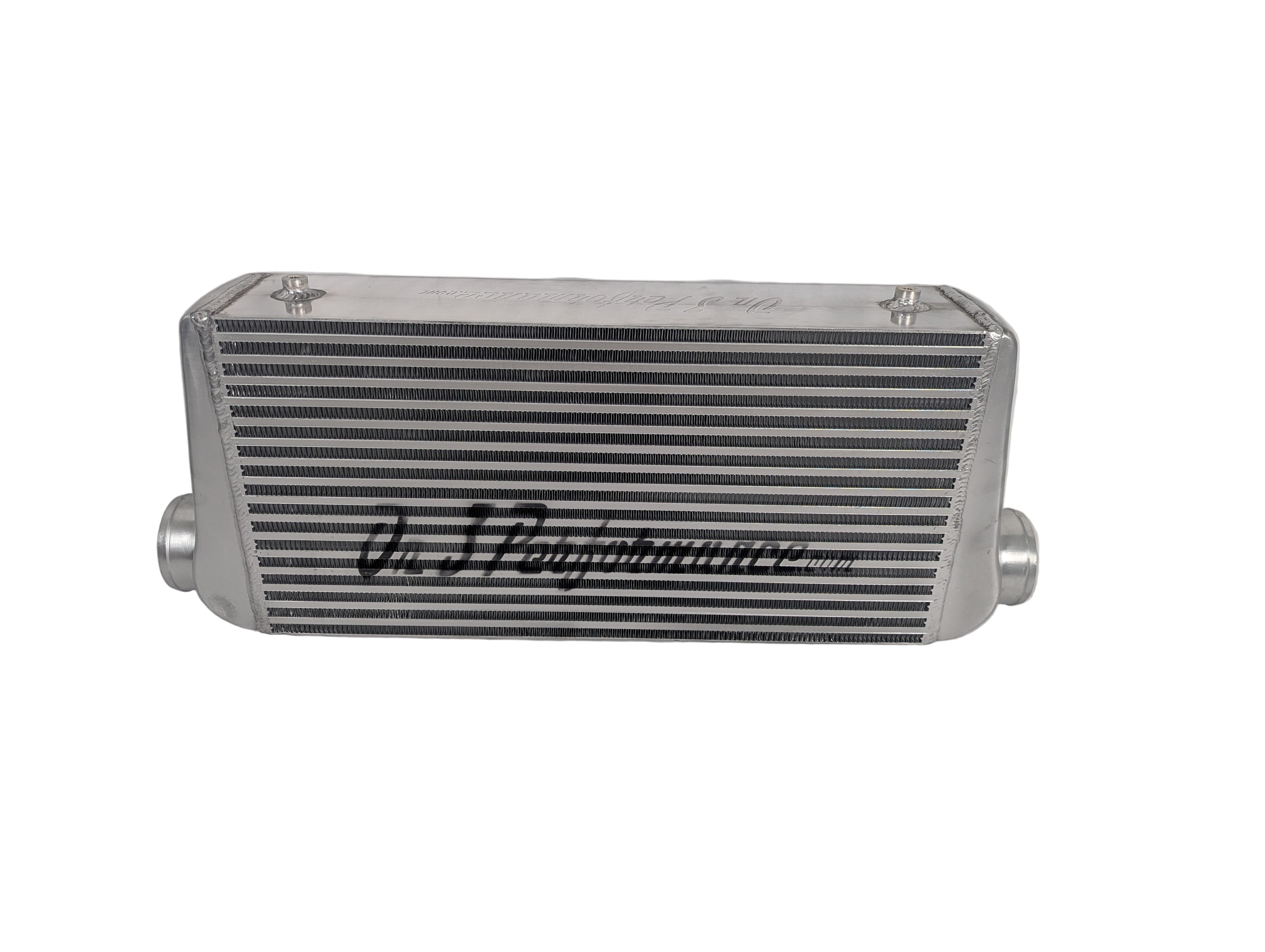

5" Intercooler

This is our 2nd largest Intercooler option for serious race builds that don't have room for our 6" intercooler. This intercooler is nearly 2x the volume when compared to our standard 3" core that comes in each of our turbo systems. This uses 3.5" Inlet & Outlets. We have performed many tests on the dyno and at the track, working diligently to make sure our intercoolers perform at the highest standard. We've made several tweaks in the manufacturing process to ensure our intercoolers are as efficient as possible, while still having a low boost pressure-drop across the core.

Our shop Coyote swapped 03 Cobra has made 1240whp using this intercooler. It has no issue keeping intake air temps under control going 7.97 @ 175mph!!

• Core is 12" tall x 23.5" wide
• Overall Width Inlet to Outlet ~31"
• High-Efficiency Bar And Plate Design
• 5.0" Thick
• 3.5" Inlet / Outlet
